Luogo di origine:
Cina
Marca:
OEM
Certificazione:
IEC, CE, SGS, ISO, Rohs
Numero di modello:
Batteria a secco LR6 Batteria LR06

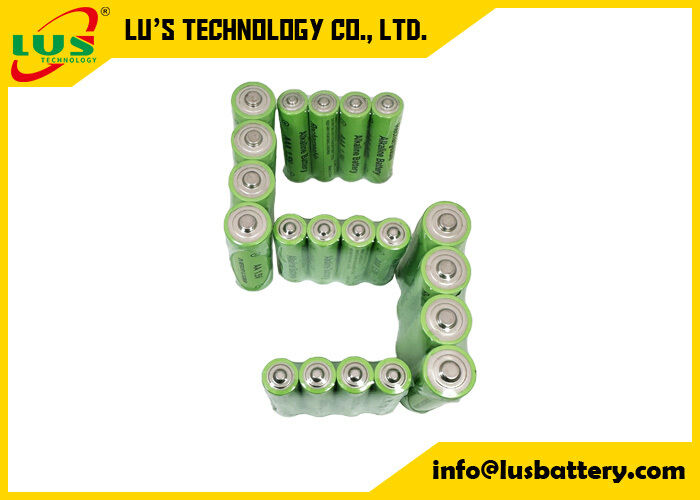

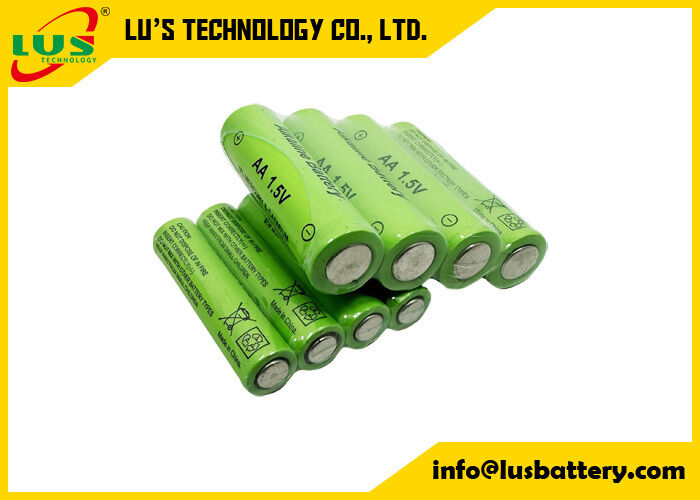

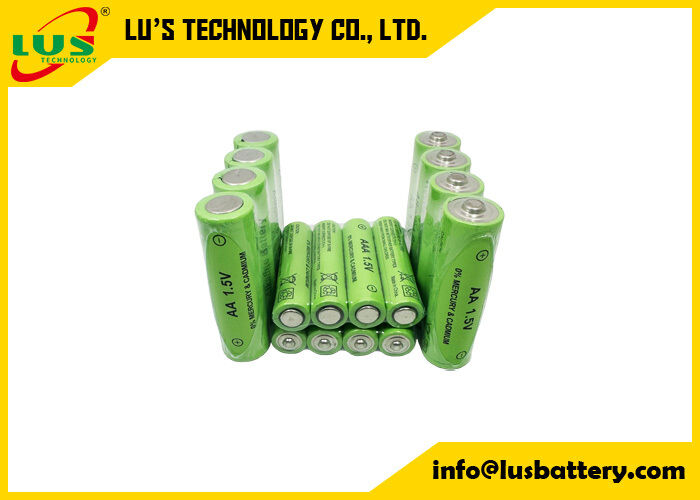

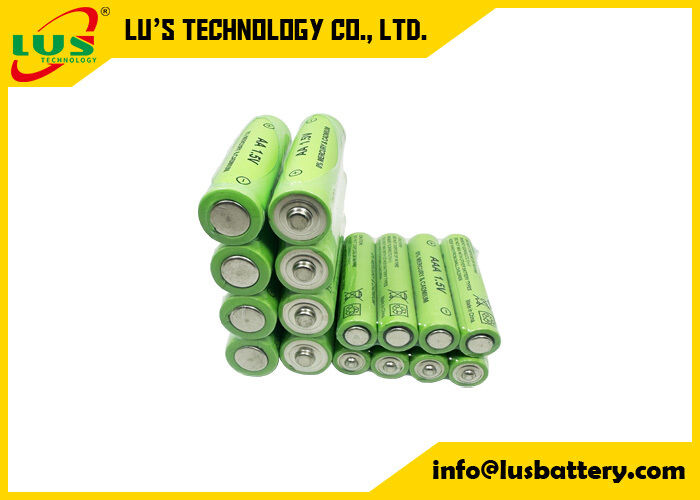

1.5 volt lithium dry cell battery AA LR6 Alkaline Battery MN1500 battery OEM factory
LR6 battery AM3 alkaline battery 1.5V Camelion Digi Alkaline Battery AA-sized battery IEC size AA battery LR6 battery R6 battery FR6 battery HR6 battery KR6 battery ZR6 battery 15A Alkaline Batteries 1.5 V AA LR6 Battery size AA Power alkaline cell battery 1.5 V 2900 mAh Battery 1.5volt Disposable battery 1.5V Heavy Duty battery AA LR6 Battery LR06 Cylindrical Multiuse Batteries LR6 Alkaline 1.5V battery LR6 AA batteries are reliable single-use batteries suitable for a variety of devices
1.5Volt Alkaline battery AA dry cell battery 1.5volt primary battery LR6 lithium battery data sheet:
| Battery type | Alkaline battery cell |
| Battery size | Size AA battery |
| Part number | LR6 |
| Voltage | 1.5 volt |
| Diameter | 13.5-14.5 mm |
| Height | 49.2-50.5 |
| Working time | 10Ω, 24h/d, 0.9V (19.1H ) ; 3.9Ω, 24h/d, 0.9V (6.4 H) |
| Weight | 0.0228 kg |
![]()
LR6 battery 1.5 volt primary cell drawing:
![]()
![]()
Size AA battery 1.5volt LR6 alkaline battery standard packing :
| Type | Blister packing | Shrink packing | ||||||||
| Pack | Inner box | Carton | Measurement | G/W | Pack | Inner box | Carton | Measurement | G/W | |
| LR6/ AA/ 1.5v | 4B/card | 20 cards | 160 cards | 391*303*193mm | 16.6 kgs | 4S/shrink | 40 pcs | 720 pcs | 311*198*182 mm | 17.2 kgs |
| 2S/shrink | 40 pcs | 720 pcs | 311*198*182 mm | 17.2 kgs | ||||||
FAQ:
Q1: How do we place an order?
A1: Please kindly send us an email for the specifed item, model and quantity.
Q2: How do we make the payment?
A2: We accept TT, LC, credit card and online order, Please do only pay to the official account.
Q3: What's the delivery time?
A3: For standard Jacket Battery, the delivery time is normally 3-7 working days after payment.
For Other Battery, the delivery time is about 20 working days after payment.
Q4: Is it the battery belongs to dangerous goods?
A4: No, it is non-dangerous goods, we have IEC & MSDS documents for identification.
Alkaline battery Typical Applications:
Industrial Alkaline Batteries are used in electronic devices that require a small, compact source of power. Suited to high drainage and power-hungry devices such as power tools, strap on headlights and toys and other applications include:
• Calculators
• Radios
• Utility Meters
• Smoke detectors
• Alarm systems
Alkaline battery USAGE GUIDE (Please refer to lEC60086.5 for detailed safety and storage specifications.
(1) insert batteries correctly with regard to the polarities (“+""-") marked on the battery and theelectrical appliances.
(2) Do not short-circuit, recharge, heat, disassemble the battery, or dispose of in fire.
(3) Do not mix use old batteries with new ones, or mix use batteries of different types, chemistries orbrands.
(4)Exhausted batteries should be immediately removed from the equipment.
(5) Keep the batteries away from small children. Do not let the child remove/replace batterieswithout monitoring from adults.
(6)Storage temperature: 5°C~30°c, and humidity conditions RH: 40%~90%.
Primary Alkaline battery list
| Model | Diameter | Height | Norminal Voltage | Test condition | Discharge |
| (mm) | (mm) | (V) | |||
| 23A | 9.9-10.2 | 28.1-28.7 | 1.5 | 20KΩ, 24h/d, 7.2V | 98h |
| 27A | 7.65-7.85 | 27.7-28.3 | 1.5 | 20KΩ, 24h/d, 7.2V | 36h |
| LR03/AAA/ | 9.5-10.5 | 43.3-44.5 | 1.5 | 10Ω, 24h/d, 0.9V | 8h |
| 3.9Ω, 24h/d, 0.9V | 2.5h | ||||
| LR6/AA/ | 13.5-14.5 | 49.2-50.5 | 1.5 | 10Ω, 24h/d, 0.9V | 19.1h |
| 3.9Ω, 24h/d, 0.9V | 6.4h | ||||
| LR14/C/ | 24.9-26.2 | 48.6-50.0 | 1.5 | 3.9Ω, 24h/d, 0.8V | 20h |
| 6.8Ω, 1h/d, 0.9V | 39h | ||||
| LR20/D/ | 32.3-34.2 | 59.5-61.5 | 1.5 | 22Ω, 24h/d, 0.8V | 19h |
| 3.9Ω, 1h/d, 0.9V | 42h | ||||
| 6LR61/9V | 26.5*17.5*48.5 | 9 | 180Ω, 24h/d, 4.8V | 800min | |
| 270Ω, 1h/d, 5.4V | 1150min | ||||
![]()
Rechargeable Alkaline battery
| Model | Diameter | Height | Norminal Voltage | Test condition | Discharge | Cycle life Times |
| (mm) | (mm) | (V) | ||||
| HR03/AAA/7 | 9.5-10.5 | 43.3-44.5 | 1.5 | 100mA, 24h/d, 0.9V | 900mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 600mAh | 50-200 times | ||||
| HR6/AA/5 | 13.5-14.5 | 49.2-50.5 | 1.5 | 100mA, 24h/d, 0.9V | 1800mAh | 50-200 times |
| 300mA, 24h/d, 0.9V | 1500mAh | 50-200 times |
![]()
Factory information:
We have professional teams on R&D, engineers and quality control experts on product development.
There are eleven production lines in our factory,
four lines for alkaline battery AA size,
three lines for alkaline battery AAA size,
two lines for alkaline battery C size,
one line for alkaline battery D size and one line for alkaline battery 9V size.
![]()
